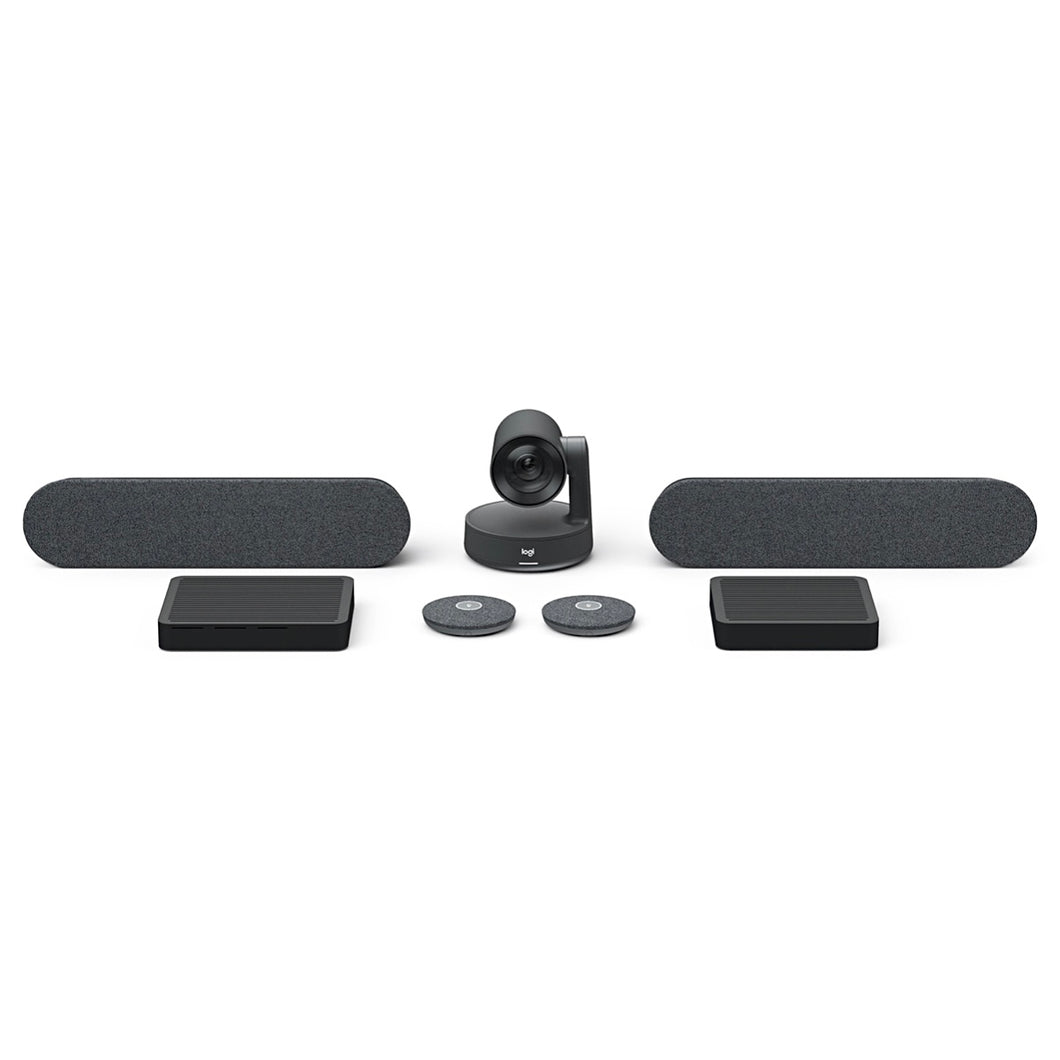

Premier modular video conferencing system for large rooms.

Rally Normal: Rally 4K PTZ camera, Rally speaker (1), Mic Pod (1), Power Adatpers, Table Hub, Display Hub, Remote Control, Power Adapters, 2-yr.

Rally Plus: Rally 4K PTZ camera, Rally speakers(2), Mic Pods (2), Table Hub, Display Hub, Remote Control, Power Adapters, 2-yr limited.

SIMPLE TO SET UP

USB Mode

Plug and play Rally Plus with any PC, Mac, or Chromebox via USB.



Appliance Mode

Deploy Rally as a room system appliance with Logitech RoomMate, a computing appliance purpose-built for video conferencing.



Clean Cabling

Keep cables and components neat, organized, and secure. Two hubs for the table and display connected by a single CAT6 cable provide clean installation.

FIND THE BEST FIT FOR YOUR LARGE ROOM

In large rooms with one or two displays, deploy Rally with tremendous flexibility and ease.





SIMPLE TO USE

Start your meeting with just one touch, seamlessly connecting Rally to your preconfigured room solution.

LOOKS BRILLIANT

Upgrade your large room meeting experience with cinema-quality video, outstanding color, and exceptional optical accuracy.

STAYS FOCUSED

Using AI, human perception, and automated PTZ, Rally adapts to meeting dynamics and keeps the camera on the action.

SOUNDS AWESOME

Rally’s ultra-low distortion speakers deliver crystal clear, room-filling sound and make sure every voice is clearly heard.

PICKS UP VOICES AT EVERY SEAT

Rally’s exquisitely sensitive mic pods ensure that everyone in the meeting is clearly heard.



GREAT CONVERSATIONS START HERE

Sound Optimization

Auto-level loud and soft voices – while suppressing unwanted noise – with AI-based RightSound technology that improves over time.

Adaptive Beamforming

Focus on the active talker with high-precision beamforming mics.

Full Duplex

Hear and be heard at the same time with excellent full duplex.

EXPAND THE CONVERSATION

Add up to 7 mic pods to accommodate larger groups and provide convenient access to mute controls.

SIMPLE TO MANAGE

Monitor and manage your meeting room devices from one single platform with Logitech Sync. Plus, get business insights into how your rooms are being used.

Insights



Monitoring

Management

DEVICE MANAGEMENT TECHNOLOGY PARTNERS

Our integration with partner solutions and dashboards means you can easily manage your devices in other platforms.

COMPARISON

Specs & Details

DIMENSIONS

SYSTEM REQUIREMENTS

Operating Systems

• Windows® 7, 8.1 or Windows 10
• macOS®: 10.10 or higher
• Chrome OS



Resolutions higher than 1080p

• Windows 8.1 or higher or macOS 10.10 or higher
• USB 3.0 port
• Compatible software



TECHNICAL SPECIFICATIONS

RIGHTSENSE TECHNOLOGIES

• RightLight with WDR
  • Low-light compensation
  • Video noise reduction
  • Low-light saturation optimization
  • Renders natural skin tones for each participant on camera
  • Reduces backlighting and glare without darkening the entire image.
• RightSight ⁵Please see RightSight Availability for details.
  • Human figure detection
  • Auto-frame participants at meeting start
  • Auto-frame participants on-demand
  • Auto-reframe participants during meetings
• RightSound
  • Machine learning AI trained to distinguish human speech from other sounds
  • AEC (Acoustic Echo Cancellation)
  • VAD (Voice Activity Detector)
  • Background noise suppression
  • Auto-level loud and soft voices
• RightSound Mic Matrix
  • Very low distortion broadside beamforming algorithm steers the factory-paired microphones directly at the talker for the best voice pickup and noise reduction
  • Supports up to 56 acoustic beams (8 per Rally Mic Pod) to lock onto the active talker
  • Beam focus refresh rate: 8ms (125 times/second)
• Anti-Vibration Suspension
  • A patent-pending suspension system decouples the speaker module within the external enclosure, virtually eliminating the vibrations that can travel through walls, stands, and tables. This improves the echo cancelling performance of Rally Mic Pods, while ensuring that video images remain clear and steady, even at high volume levels and when zoomed in.
  • Peak-limiting algorithm eliminates even momentary speaker clipping to prevent distortion.



Rally Camera

• Zoom: 15x HD zoom (5x optical + 3x digital)
• Pan: 180° (±90°)
• Tilt: 140° (+50° / -90°)
• Field of View
  • Diagonal: 90°
  • Horizontal: 82°
  • Vertical: 52°
• Total Room Coverage: 262° wide x 192° tall (field of view + pan and tilt)
• Resolutions @ 30fps: 4K Ultra HD, 1440p, 1080p, 900p, 720p, and SD
• Resolutions @ 60fps: 1080p, 720p
• RightLight Technologies: Wide Dynamic Range (WDR), low-light compensation, video noise reduction, low-light saturation optimization
• Privacy: Lens parks at -90° in sleep mode for assured privacy



Rally Mic Pod

• Pickup Range: 15 ft (4.5 m) diameter
• Four omnidirectional microphones forming eight acoustic beams
• AEC: Acoustic Echo Cancellation
• VAD: Voice Activity Detector
• Background noise suppression
• Mute button with LED status indicator
• Captive 9.6 ft (2.95m) 12-pin cable
• Daisy chain up to 7 Rally Mic Pods
• Frequency response: 90Hz – 16kHz
• Sensitivity: >-27 dB +/-1dB @ 1Pa
• Microphone data rate: 48 kHz
• Recommended # of participants
  • Rally (one Mic Pod): 16
  • Rally Plus (two Mic Pods): 16
  • Additional participants per Mic Pod: 6
  • Recommended participants for Rally with 7 Mic Pods: 46



Rally Speaker

• High-performance 3" (76mm) driver with rare-earth magnet
• Patent-pending suspension system eliminates vibration-induced camera shake and audio interference
• Mini XLR cable connects to Rally Display Hub for both signal and power
• Speaker volume 95dB SPL @1W, 100dB SPL @7.5W, both +/-2dB at ½ meter
• Sensitivity: 95+/-2 dB SPL at ½ meter
• Distortion: 200Hz–300Hz <2.5%, 300Hz–10kHz < 1%@7.5W
• Sampling rate: 48 kHz



Rally Table Hub

• Single CAT6A cable connection to Rally Display Hub (16.4 ft / 5m cable included, supports customer-supplied cables up to 164 ft (50 m)
• Hub 5 m cable included, supports customer-supplied cables up to 50 m
• Active speaker detection: analyzes audio from up to 7 Mic Pods and 56 beams every 8 ms
• 12 Pin connector for Rally Mic Pod
• HDMI Type A passthrough to Display Hub (x2)
• USB Type C
• USB Type A (reserved for future capability)
• USB Type B (connects to meeting room computer)
• RJ45 (reserved for future capability)
• Power input



Rally Display Hub

• HDMI Type A: (x2) (connects to displays)
• USB C (connects to Rally Camera)
• USB Type B (connects to meeting room computer)
• RJ45: connects to Table Hub
• Mini XLR: x2
• Powers one or two Rally Speakers
• Power input



Remote Control

• RF remote control (line of sight not required)
• CR2032 batteries (included)



Cables / Power

• Camera to Display Hub
  • 6.5 ft (2m) USB 3.1 Type C to USB Type C 3.1
• Conference Room Computer to Display or Table Hub
  • 6.5 ft (2m) USB 3.1 Type A to USB Type B
• Display Hub to Table Hub
  • 16.4 ft (5 m) CAT6A Ethernet cable (supports customer-supplied cables up to 164 ft (50 m)
• Display Hub to Speaker (x2)
  • 9.6 ft (2.95 m) Mini XLR (supports customer-supplied extension cables up to 9.8 ft (3 m)
• Conference Room Computer to Displays (x2)
  • 6.5 ft (2m) HDMI A
• Mic Pod
  • 9.6 ft (2.95m): Hardwired with 12 pin connector
• Power Outlets to Power Supplies (x2): 3.28 gy (1 m)
  • 3.2 ft (1 m)
• Power Supplies to Table Hub / Display Hub (x2)
  • 4.9 ft (1.5 m)



AVAILABLE ACCESSORIES

• RALLY MOUNTING KIT
• Rally Mounting Kit with cable retainers: (x2) and mounting brackets for camera, speakers (x2), and hubs (x2)
• Rally Mic Pod
• Deploy up to 7 Rally Mic Pods for greater audio coverage in larger rooms
• MIC POD MOUNT
• Anchors mics and hides cables for a finished look
• RALLY MIC POD HUB
• Connect 1-3 Rally Mic Pods (or additional hubs) for placement flexibility and under-table cabling
• Rally Speaker
• Add a second Rally Speaker for larger rooms



Certifications

• Certified for Skype for Business and ready for Teams
• Zoom Certified
• Certified for Google Hangouts Meet Hardware
• Microsoft Cortana® certified
• Cisco Jabber® and WebEx compatible
• Compatible with BlueJeans, BroadSoft, GoToMeeting, Video, and other video conferencing, recording, and broadcasting applications that support USB cameras



COMPATIBILITY

• Plug-and-play USB connectivity



Appliance Mode

• Supports compatible video conferencing software in appliance mode when deployed with Logitech RoomMate, including Zoom Rooms Appliances. Certification pending for Microsoft Teams Rooms on Android and additional video conferencing platforms.



PACKAGE CONTENTS

• Logitech Rally
• Rally Camera
• Rally Display Hub
• Rally Table Hub
• Rally Speaker (x1)
• Rally Mic Pod (x1)
• Remote control
• USB Type C to USB Type C
• USB Type A to USB Type B
• CAT6A Ethernet cable
• HDMI Type A (x2)
• A/C cables (x2)
• Power Supplies (x2)
• Documentation
• Logitech Rally Plus
• Rally Camera
• Rally Display Hub
• Rally Table Hub
• Rally Speaker (x2)
• Rally Mic Pod (x2)
• Remote control
• USB Type C to USB Type C
• USB Type A to USB Type B
• CAT6A Ethernet cable
• HDMI Type A (x2)
• A/C cables (x2)
• Power Supplies (x2)
• Documentation



WARRANTY INFORMATION

• Standard: 2-year limited hardware warranty included.
